Fluidized Bed Jet Mill Manufacturer | JETER
Ultra Fine Grinding
Low Contamination
Precise Classification
Low Temperature Grinding
High Purity Powder
GMP Design
Key Project Parameters
| Parameter | Information required | Why it matters |
|---|---|---|
| Material | Name, SDS, hardness, abrasiveness and bulk density | Determines process route and product-contact materials |
| Feed size | Typical and maximum particle size | Affects feeding, pre-crushing and grinding load |
| Target PSD | D50, D90 or D97 and oversized-particle limit | Defines classifier and operating requirements |
| Capacity | Required kg/h or batch output | Used for equipment and collection-system sizing |
| Process gas | Compressed air or inert gas | Depends on material safety and atmosphere sensitivity |
| Purity | Metallic and other contamination limits | Guides liner and product-contact material selection |
| Temperature | Maximum acceptable product temperature | Supports heat-sensitive material evaluation |
| System scope | Feeding, milling, classification, collection and controls | Defines the complete project boundary |
Final performance depends on the actual material and target specification. Representative testing is recommended before production equipment is sized.
Send these parameters to JETER for an equipment recommendation.

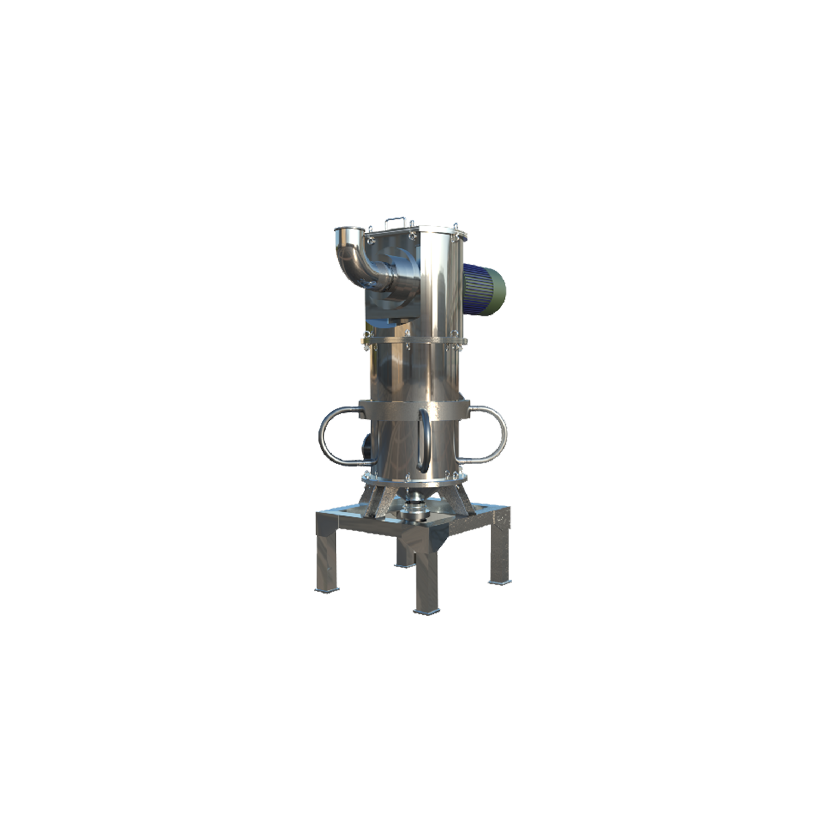

Fluidized Bed Jet Mill Overview
The Fluidized Bed Jet Mill is an advanced ultra-fine grinding system designed for processing heat-sensitive, high-value and contamination-sensitive materials.
Unlike traditional mechanical grinding equipment, the fluidized bed jet mill uses high-speed compressed air to accelerate particles and achieve size reduction through particle-to-particle collision. Since there is no grinding media or mechanical contact inside the grinding chamber, the system provides excellent product purity and minimizes contamination.
JETER Fluidized Bed Jet Mills integrate grinding and dynamic classification technologies into one compact system, allowing precise control of particle size distribution and producing powders with excellent flowability and consistency.
The equipment is widely used in pharmaceutical micronization, battery materials, ceramic powders, fine chemicals, food additives and advanced materials where ultra-fine particle processing is required.

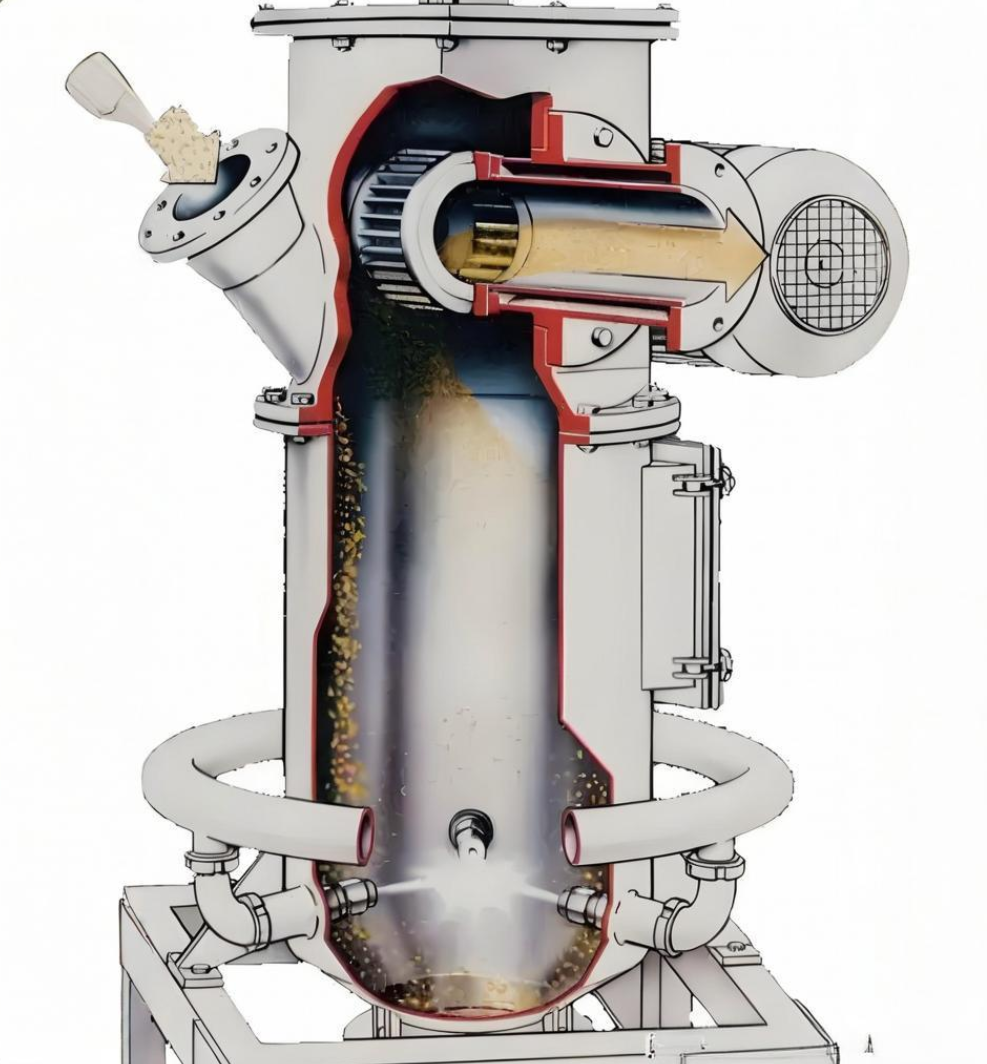

Working Principle of Fluidized Bed Jet Mill
The working principle of a fluidized bed jet mill is based on high-speed airflow and particle collision technology.
During operation, compressed air enters the grinding chamber through specially designed nozzles, creating a high-speed airflow field. Raw materials are fed into the grinding zone and become suspended in the fluidized state.
Driven by the high-speed airflow, particles accelerate and collide with each other. The impact energy generated during particle collision breaks the material into smaller particles without the need for mechanical grinding components.
After grinding, the powder enters the classifier area. The dynamic classifier separates fine particles from coarse particles according to the required particle size.
Qualified fine powder is collected through the powder collection system, while oversized particles return to the grinding zone for further processing.
The final particle size can be accurately adjusted by controlling:
Air pressure
Feeding rate
Classifier speed
Material characteristics
This design enables stable production of micron and sub-micron powders with narrow particle size distribution.
Main Components of Fluidized Bed Jet Mill
1. Grinding Chamber
The grinding chamber is the core area where particle acceleration and collision occur.
The optimized chamber design improves grinding efficiency while reducing material retention and contamination risk.
2. Grinding Nozzles
Multiple precision nozzles generate high-speed airflow jets that provide the required energy for particle acceleration and micronization.
3. Dynamic Classifier
The integrated classifier provides accurate particle size control.
By adjusting classifier speed, users can achieve different powder fineness requirements.
4. Feeding System
The feeding system ensures stable and continuous material supply, improving production consistency.
5. Powder Collection System
The collection system efficiently separates finished powder from airflow and provides a clean production environment.
Advantages of JETER Fluidized Bed Jet Mill
Ultra Fine Grinding Capability
The fluidized bed jet mill can achieve micron-level powder processing and is suitable for applications requiring strict particle size control.
Typical particle size range:
D50: 2-10 μm
D90: 10-45 μm
Low Contamination Processing
Because there are no grinding media or mechanical contact parts inside the grinding chamber, contamination risk is significantly reduced.
This makes the equipment especially suitable for:
Pharmaceutical ingredients
Battery materials
High-purity chemicals
Ceramic powders
Low Temperature Operation
The grinding process is driven by compressed air and generates minimal heat, making it ideal for heat-sensitive materials.
Precise Particle Size Control
The integrated classifier allows operators to adjust powder fineness according to different application requirements.
Easy Cleaning and Maintenance
The simple internal structure and stainless-steel design make cleaning and maintenance convenient, especially for GMP production environments.
Applications of Fluidized Bed Jet Mill
The Fluidized Bed Jet Mill is widely used in industries that require high-purity, ultra-fine and precisely controlled powder processing.
Due to its low contamination, low temperature operation and excellent particle size control, it has become an ideal solution for advanced powder manufacturing.
Pharmaceutical Industry
API Micronization
In pharmaceutical manufacturing, particle size directly affects dissolution rate, bioavailability and product performance.
Fluidized Bed Jet Mills are widely used for micronization of active pharmaceutical ingredients (API), providing:
Precise particle size distribution
High product purity
Low thermal impact
GMP compliant design
Typical applications include:
API micronization
Inhalation powder processing
Pharmaceutical intermediates
High-value pharmaceutical compounds
Battery Material Industry
Advanced Battery Powder Processing
The battery industry requires strict control of particle size, purity and material consistency.
Fluidized Bed Jet Mills are suitable for processing:
Lithium iron phosphate (LFP)
Cathode materials
Anode materials
Ceramic separators
Conductive additives
Advantages for battery materials:
No grinding media contamination
Stable particle size distribution
Low temperature grinding
High-purity powder production
Ceramic Industry
Fine Ceramic Powder Grinding
Ceramic materials often require precise particle size control to improve sintering performance and final product quality.
The Fluidized Bed Jet Mill can process:
Alumina
Silicon carbide
Zirconia
Silicon nitride
Ceramic additives
Benefits include:
Uniform particle size
Improved powder flowability
Reduced impurities
Chemical Industry
Fine Chemical Powder Processing
The equipment is widely used for producing high-quality fine chemical powders.
Applications include:
Pigments
Dyes
Catalysts
Specialty chemicals
Functional materials
The precise classification system allows manufacturers to achieve consistent powder quality for different applications.
Technical Advantages
1. Integrated Grinding and Classification System
JETER Fluidized Bed Jet Mill combines grinding and classification in one system.
The integrated design reduces equipment footprint and improves production efficiency.
2. Excellent Particle Size Control
The advanced dynamic classifier provides accurate control of powder fineness.
By adjusting classifier parameters, users can achieve different particle size requirements according to application needs.
3. High Product Purity
The grinding process does not require grinding media.
This eliminates contamination caused by wear of grinding components and ensures high-purity powder production.
4. Suitable for Heat-Sensitive Materials
The grinding process uses compressed air as the energy source.
The temperature increase during operation is minimal, making it suitable for materials sensitive to heat.
5. Flexible Production Capacity
JETER provides different models for laboratory testing, pilot production and industrial-scale manufacturing.
Customized solutions can be designed according to:
Material characteristics
Required particle size
Production capacity
Application requirements

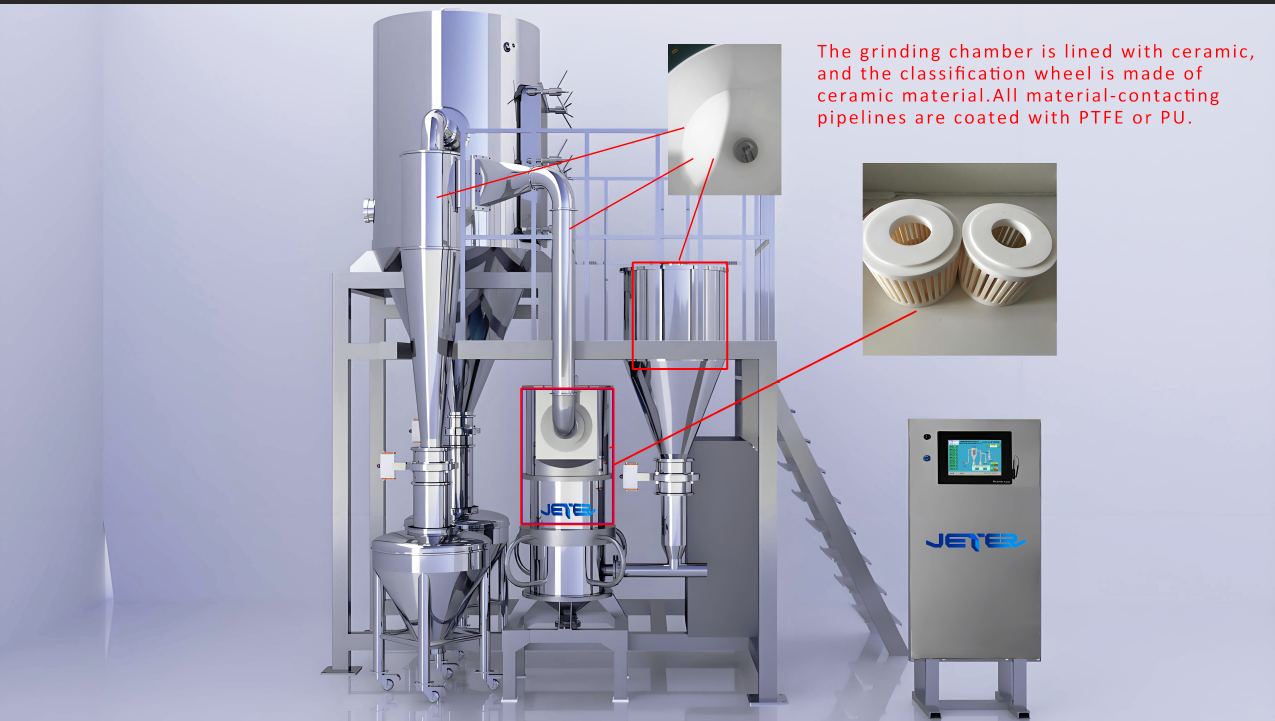

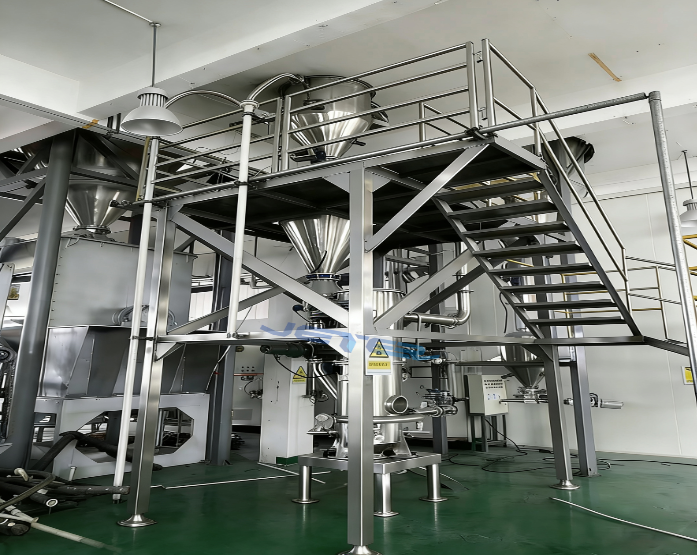

Complete Fluidized Bed Jet Mill System
A complete JETER Fluidized Bed Jet Mill production line normally includes:
Feeding System
Provides stable and controlled feeding of raw materials.
Fluidized Bed Jet Mill
The core grinding unit where ultra-fine particle reduction occurs.
Air Classifier System
Controls final particle size and improves product consistency.
Cyclone Separator
Collects larger powder particles and improves recovery efficiency.
Dust Collector
Ensures clean operation and protects the working environment.
Control System
Provides automated operation and process monitoring.
Why Choose JETER as Your Fluidized Bed Jet Mill Manufacturer?
Professional Powder Processing Experience
JETER focuses on powder processing technology and provides complete solutions including grinding, mixing, drying and granulation equipment.
Customized Engineering Solutions
Every material has different characteristics.
Our engineering team provides customized equipment selection based on:
Material properties
Required fineness
Production capacity
Industry requirements
High Quality Stainless Steel Design
Equipment can be manufactured with stainless steel materials according to customer requirements, including:
SUS304
SUS316L
Suitable for pharmaceutical and high-purity applications.
Complete Technical Support
From laboratory testing and equipment selection to installation and after-sales service, JETER provides professional support throughout the project lifecycle.
Frequently Asked Questions
What is a Fluidized Bed Jet Mill?
A Fluidized Bed Jet Mill is an ultra-fine grinding machine that uses high-speed compressed air to accelerate particles and achieve size reduction through particle collision.
What particle size can a Fluidized Bed Jet Mill achieve?
Depending on material characteristics, the equipment can typically achieve particle sizes from several microns to sub-micron levels.
Common range:
D50: 2-10 μm
D90: 10-45 μm
What materials can be processed by a Fluidized Bed Jet Mill?
It can process pharmaceutical materials, chemicals, ceramic powders, battery materials, minerals and other fine powders.
Does the jet mill cause material contamination?
No. Since there are no grinding media, contamination caused by mechanical wear is minimized.
Is a Fluidized Bed Jet Mill suitable for pharmaceutical applications?
Yes. It is widely used for API micronization due to its high purity, precise particle control and low temperature operation.
How is particle size controlled?
Particle size is controlled by adjusting:
Classifier speed
Air pressure
Feeding rate
Material characteristics
Can JETER provide customized jet milling solutions?
Yes. JETER provides customized solutions based on production capacity, material characteristics and final powder requirements.
Looking for a Reliable Fluidized Bed Jet Mill Manufacturer?
JETER provides advanced fluidized bed jet mill solutions for pharmaceutical, chemical, ceramic and new energy industries.
Contact our technical team for:
Equipment selection
Material testing
Customized powder processing solutions
Production line design
Fluidized Bed Jet Mill for Ultrafine Powder Processing
JETER manufactures fluidized bed jet mills for high-purity and contamination-sensitive powder processing. Compressed gas accelerates particles inside the grinding chamber, where particle-to-particle impact produces ultrafine powder without conventional grinding media.
Typical Applications
Why Choose a JETER Fluidized Bed Jet Mill?
How to Select the Right Jet Mill
Selection depends on the material, feed size, target particle size, required capacity, moisture, hardness and purity requirements. Send us your powder information and processing target so our engineers can recommend a suitable configuration.
Learn more about our powder processing services or contact JETER for material testing, equipment selection and a quotation.
Frequently Asked Questions
What particle size can a fluidized bed jet mill achieve?
The achievable particle size depends on the material and operating conditions. JETER evaluates the feed material and target specification before recommending the classifier and system configuration.
Can the system process heat-sensitive materials?
Yes. Jet milling normally produces limited temperature rise because the expanding compressed gas provides a cooling effect during grinding.
Can JETER provide material testing?
Yes. Customers can submit material and target particle-size requirements for testing and process evaluation before equipment selection.
Request a test or quotation from JETER
>
Adjustable particle-size distribution
Fluidized Bed Jet Mill for Ultrafine Powder Processing
JETER manufactures fluidized bed jet mills for high-purity and contamination-sensitive powder processing. Compressed gas accelerates particles inside the grinding chamber, where particle-to-particle impact produces ultrafine powder without conventional grinding media.
Typical Applications
Why Choose a JETER Fluidized Bed Jet Mill?
How to Select the Right Jet Mill
Selection depends on the material, feed size, target particle size, required capacity, moisture, hardness and purity requirements. Send us your powder information and processing target so our engineers can recommend a suitable configuration.
Learn more about ourpowder processing servicesor contact JETER for material testing, equipment selection and a quotation.
Frequently Asked Questions
What particle size can a fluidized bed jet mill achieve?
The achievable particle size depends on the material and operating conditions. JETER evaluates the feed material and target specification before recommending the classifier and system configuration.
Can the system process heat-sensitive materials?
Yes. Jet milling normally produces limited temperature rise because the expanding compressed gas provides a cooling effect during grinding.
Can JETER provide material testing?
Yes. Customers can submit material and target particle-size requirements for testing and process evaluation before equipment selection.
Fluidized Bed Jet Mill for Ultrafine Powder Processing
JETER manufactures fluidized bed jet mills for high-purity and contamination-sensitive powder processing. Compressed gas accelerates particles inside the grinding chamber, where particle-to-particle impact produces ultrafine powder without conventional grinding media.
Typical Applications
Why Choose a JETER Fluidized Bed Jet Mill?
How to Select the Right Jet Mill
Selection depends on the material, feed size, target particle size, required capacity, moisture, hardness and purity requirements. Send us your powder information and processing target so our engineers can recommend a suitable configuration.
Learn more about ourpowder processing servicesor contact JETER for material testing, equipment selection and a quotation.
Frequently Asked Questions
What particle size can a fluidized bed jet mill achieve?
The achievable particle size depends on the material and operating conditions. JETER evaluates the feed material and target specification before recommending the classifier and system configuration.
Can the system process heat-sensitive materials?
Yes. Jet milling normally produces limited temperature rise because the expanding compressed gas provides a cooling effect during grinding.
Can JETER provide material testing?
Yes. Customers can submit material and target particle-size requirements for testing and process evaluation before equipment selection.
Adjustable particle-size distribution
Low contamination and low temperature rise
Integrated dynamic air classification
Suitable for heat-sensitive and abrasive materials
Laboratory testing and customized system design available
Pharmaceutical and active ingredient powders
Battery and electronic materials
Fine chemicals and specialty chemicals
Minerals, ceramics and high-purity materials
Adjustable particle-size distribution
Low contamination and low temperature rise
Integrated dynamic air classification
Suitable for heat-sensitive and abrasive materials
Laboratory testing and customized system design available
Pharmaceutical and active ingredient powders
Battery and electronic materials
Fine chemicals and specialty chemicals
Minerals, ceramics and high-purity materials
Integrated dynamic air classification
Suitable for heat-sensitive and abrasive materials
Laboratory testing and customized system design available
Pharmaceutical and active ingredient powders
Battery and electronic materials
Fine chemicals and specialty chemicals
Minerals, ceramics and high-purity materials
Get in touch with JETER today and discover the right ultra-fine grinding solution for your application.
Fluidized Bed Jet Mill Selection Guide
A fluidized bed jet mill is commonly selected when the buyer needs ultrafine grinding, narrow particle size distribution, reduced mechanical contamination and stable long-term powder processing. The final configuration should be matched to the material behavior and production target.
Be-Fit Applications
Battery cathode, anode, ceramic and solid electrolyte powders
Pharmaceutical and API micronization where cleanability and PSD control matter
Fine chemicals, pigments and mineral powders requiring controlled top size
Heat-sensitive materials where excessive mechanical heat should be avoided
Information Needed for Quotation
Material name, bulk density and moisture sensitivity
Feed particle size and target D50/D90 or mesh size
Required capacity in kg/h
Product-contact material or contamination limits
Whether nitrogen protection, closed-loop processing or dust collection is required
For process validation, you can also review our Laboratory Jet Mill, Air Classifier and powder processing services.
Request a fluidized bed jet mill solution from JETER
Fluidized Bed Jet Mill Selection Guide
A fluidized bed jet mill is suitable when buyers need ultra-fine powder, reduced wear, low heat generation and precise top-cut control. JETER configures nozzles, classifier wheels, liners and collection systems according to material hardness, target PSD and production capacity.
Common buyer requirements
Fine powder grinding with controlled D97 top cut
Battery, ceramic, pharmaceutical and chemical powders
Low contamination ceramic or wear-resistant lining
Closed-loop nitrogen protection for sensitive materials
RFQ checklist
Material, feed size, target D50/D97 and bulk density
Hourly capacity and continuous operation requirement
Wear, purity, explosion-proof or inert gas requirements
Need for air classifier, dust collector and automation
Explore related pages: battery material jet milling, laboratory jet mill, request a quote.
