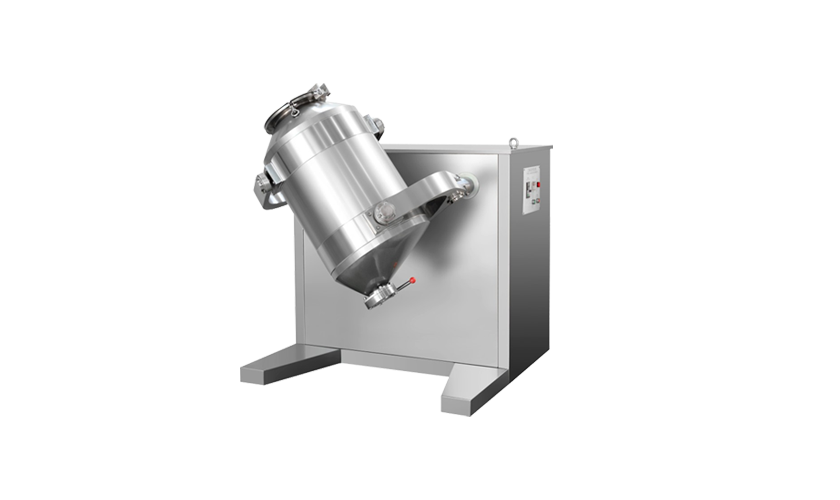

3D powder mixer
The product remains unaffected by centrifugal force during the mixing process, exhibiting no proportion deviation or stratification phenomenon. It enables precise differentiation in weight ratios of each component, achieving a mixing rate exceeding 99.9%. Amongst the current range of mixers available, it belongs to the category of high-quality products. With a loading rate of up to 80%, the mixing process is highly efficient and completed in a short amount of time. The entire machine adopts a simplified body arc transition design and undergoes precision polishing treatment to meet GMP requirements.
3D powder mixer dust-free and fully enclosed mixing, as well as fast and uniform mixing of a wide range of materials with different specific gravity and particle size. The equipment continuously drives the storage tank to move through a unique alternating cyclic motion to achieve the mixing goal. In addition, the equipment offers the advantages of smooth operation, low noise, high loading factor and short mixing time.
Model | Cylinder volume [L] | Loading volume [L] | Loading weight [kg] | Speed [r/min] | Mixing time [min] | Power [kw] | Dimensions [mm] | Weight [kg] |
SWH-5 | 5 | 3 | 1.5 | 15 | 5-22 | 0.12 | 450*500*650 | 100 |
SWH-10 | 10 | 8 | 4 | 15 | 5-15 | 0.18 | 500*550*700 | 150 |
SWH-25 | 25 | 20 | 10 | 17 | 5-15 | 0.55 | 900*900*1000 | 300 |
SWH-50 | 50 | 40 | 20 | 17 | 5-15 | 0.75 | 900*1000*1220 | 500 |
SWH-100 | 100 | 80 | 40 | 12 | 5-15 | 1.5 | 1100*1300*1250 | 800 |
SWH-200 | 200 | 160 | 80 | 8 | 5-15 | 2.2 | 1300*1650*1550 | 1200 |
SWH-300 | 300 | 240 | 120 | 6 | 5-12 | 4 | 1500*1800*1700 | 1400 |
SWH-400 | 400 | 320 | 160 | 4 | 5-12 | 4 | 1600*2000*1800 | 1700 |
SWH-600 | 600 | 480 | 240 | 4 | 5-12 | 5.5 | 1700*2100*1850 | 2100 |
SWH-800 | 800 | 640 | 320 | 3 | 5-11 | 7.5 | 2100*2400*2250 | 2400 |
SWH-1000 | 1000 | 800 | 400 | 3 | 5-11 | 7.5 | 2280*2600*2500 | 2550 |
SWH-1500 | 1500 | 1200 | 600 | 3 | 5-11 | 11 | 2500*3100*2600 | 3100 |
