ACM Mill for Precise Fine Powder Grinding and Classification
Product Introduction

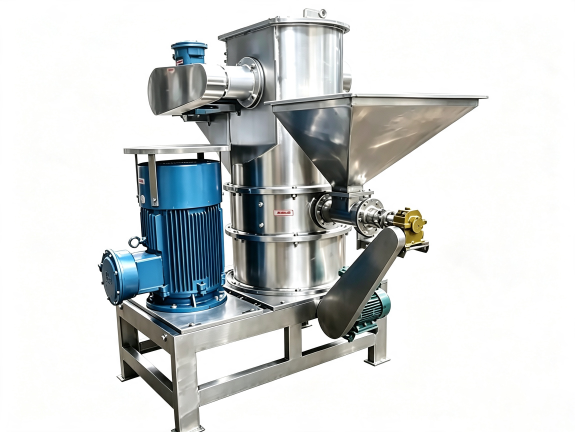

SHJETER ACM Mill (Air Classifying Mill) is an advanced powder processing system that integrates grinding and classification in a single unit.
By combining high-speed impact grinding technology with an integrated air classifier, the ACM Mill provides precise particle size control, high efficiency and excellent powder quality.
Designed for industries requiring fine and uniform powders, SHJETER ACM Mill is widely used in pharmaceutical, chemical, food, battery materials and advanced powder applications.
What is an ACM Mill?
An ACM Mill, also known as an Air Classifying Mill, is a mechanical grinding system that combines impact milling and air classification technology.
Unlike conventional grinding equipment, the ACM Mill can simultaneously reduce particle size and classify fine particles during operation.
The integrated classifier separates particles according to aerodynamic forces, allowing oversized particles to return to the grinding zone while qualified fine particles are discharged.
This continuous grinding and classification process provides stable particle size distribution and improves production efficiency.
Working Principle of Air Classifying Mill
The ACM Mill operates through the combination of high-speed impact grinding and internal air classification.

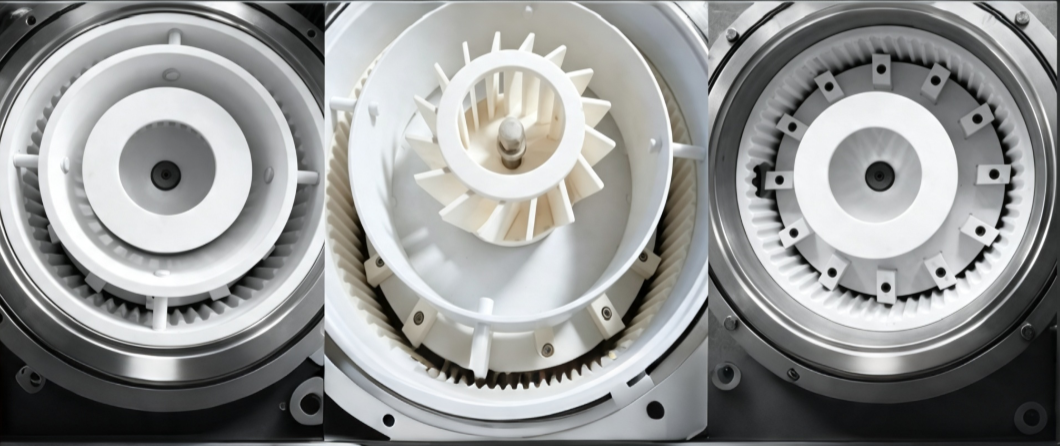

During operation, materials enter the grinding chamber and are accelerated by the rotating grinding rotor.
High-speed impact forces break the particles into smaller sizes.
At the same time, airflow carries the ground particles toward the classifier section. The classifier wheel separates particles according to their size and density.
Fine particles that meet the required specification are collected, while larger particles are returned for further grinding.
This integrated design enables continuous production with accurate particle size control.
Key Features of SHJETER ACM Mill
• Integrated grinding and classification system
• Precise control of final particle size
• Narrow particle size distribution
• High grinding efficiency with optimized energy consumption
• Suitable for heat-sensitive materials
• Compact design with reduced equipment footprint
• Easy adjustment of particle fineness
• Stainless steel construction for clean powder processing
• Available with complete feeding and dust collection systems
Technical Advantages of ACM Mill
1. Integrated Grinding and Classification
The combination of milling and classification in one system eliminates additional classification equipment and simplifies the production process.
2. Excellent Particle Size Control
The internal classifier allows accurate adjustment of powder fineness and helps achieve consistent particle size distribution.
3. High Production Efficiency
Continuous grinding and classification improve material processing efficiency and reduce unnecessary over-grinding.
4. Reduced Material Contamination
The optimized grinding structure minimizes unnecessary contact surfaces and supports high-quality powder production.
5. Flexible Application Capability
Different rotor designs, classifier configurations and process parameters allow customization for various materials.
Applications of ACM Mill
Battery Materials
ACM Mills are suitable for:
• Graphite powder processing
• Cathode material preparation
• Anode materials
• Conductive powder processing
Pharmaceutical Industry
Applications include:
• API micronization
• Pharmaceutical intermediates
• Fine chemical ingredients
• High-value powders
Chemical Industry
Suitable for:
• Pigments
• Dyes
• Resins
• Specialty chemicals
Food Industry
Used for:
• Plant powders
• Functional ingredients
• Food additives
• Nutritional powders
Advanced Materials
Including:
• Ceramic powders
• Mineral powders
• Composite materials
• Fine industrial powders
ACM Mill vs Jet Millair classification system
| Comparison | ACM Mill | Jet Mill |
| Grinding Method | Mechanical impact grinding | High velocity airflow collision |
| Classification | Integrated air classifier | External or integrated classification |
| Particle Size | Fine powder range | Ultra fine micron/sub-micron range |
| Energy Source | Electric motor | Compressed air or nitrogen |
| Main Advantage | High efficiency and flexible operation | High purity and minimal contamination |
| Typical Applications | Chemical, food, minerals, pharmaceutical | Battery materials, API, advanced materials |
ACM Mill vs Traditional Mechanical Mill
Why Choose ACM Mill Instead of Traditional Mechanical Mills？
Traditional mechanical mills usually rely only on crushing or impact forces, which may cause wide particle size distribution.
ACM Mill combines grinding and classification technology, allowing:
• Better particle size consistency
• Reduced over-grinding
• Improved powder quality
• Higher production efficiency
• More flexible process control
For industries requiring stable powder performance, ACM Mill provides a more advanced processing solution.
Engineering Solutions
Customized ACM Mill Solutions by SHJETER
Every powder material has different processing characteristics.
SHJETER provides customized ACM Mill solutions based on:
• Material hardness
• Moisture content
• Required particle size
• Production capacity
• Powder purity requirements
Our engineering team can provide complete solutions including:
Material testing
Process design
Equipment manufacturing
System integration
Installation support
Customer Benefits
Benefits of SHJETER ACM Mill
✓ Stable and uniform powder quality
✓ Accurate particle size control
✓ Improved production efficiency
✓ Reduced energy consumption
✓ Easy operation and maintenance
✓ Suitable for multiple industries
✓ Customized engineering support
FAQ
Frequently Asked Questions
What is an ACM Mill used for?
An ACM Mill is used for fine powder grinding and particle size classification in industries including pharmaceuticals, chemicals, food, battery materials and advanced materials.
What particle size can an ACM Mill achieve?
The final particle size depends on material properties, rotor speed, classifier settings and process conditions. ACM Mills can achieve controlled fine powder production for different applications.
What is the difference between ACM Mill and Jet Mill?
ACM Mills use mechanical impact grinding combined with air classification, while Jet Mills use high velocity airflow collision without mechanical grinding parts. The suitable equipment depends on material requirements and target particle size.
Can ACM Mill process heat-sensitive materials?
Yes. Through optimized airflow design and temperature control, ACM Mills can process many heat-sensitive materials requiring stable powder quality.
Does SHJETER provide complete powder processing systems?
Yes. SHJETER provides complete powder processing solutions including feeding systems, grinding equipment, classifiers, dust collection and automated production lines.
