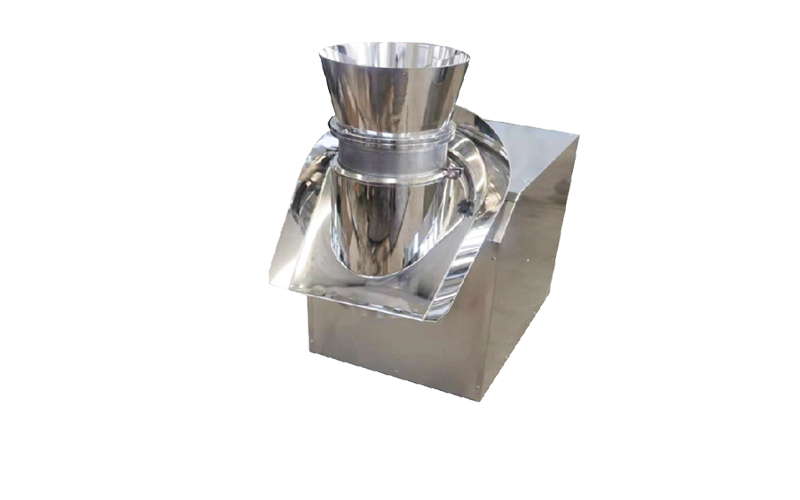

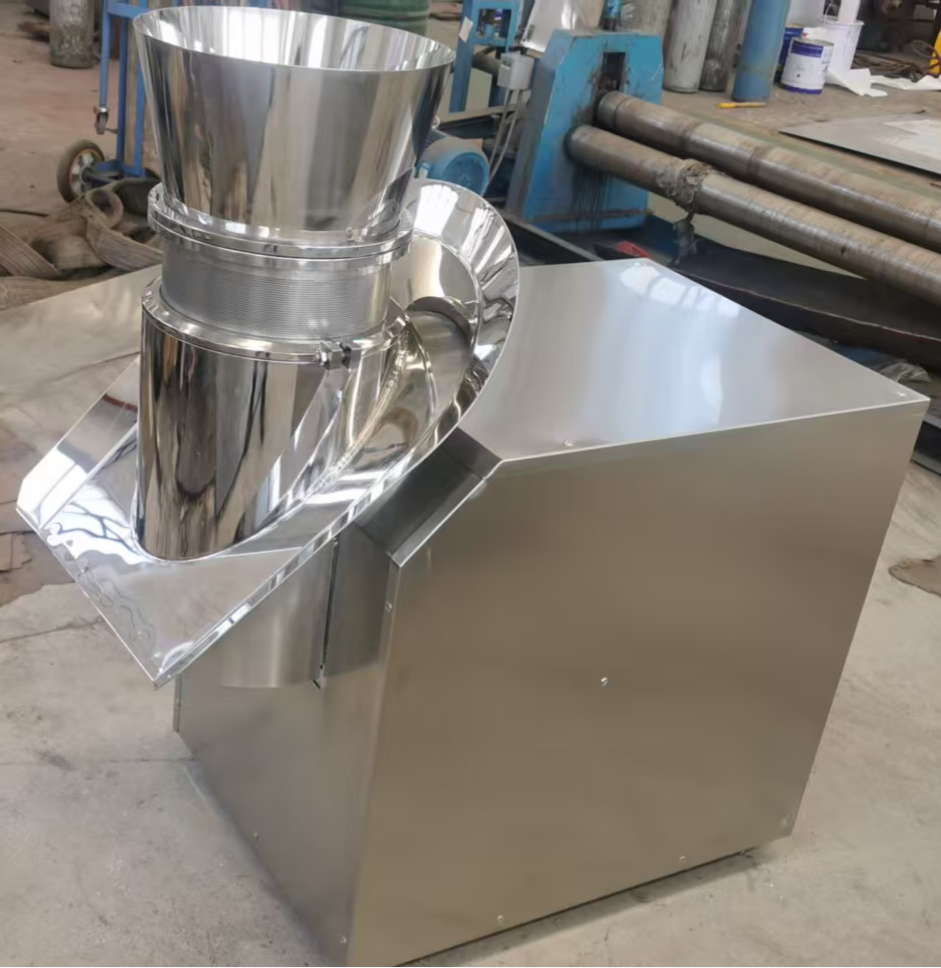

ZL Rotary Granulator – High-Efficiency Powder Granulation Equipment
Improved flowability and minimized dust emission during powder granulation. Reinforce the solubility by means of powder agglomeration. The rotary granulator boasts a compact structure, exquisite appearance, effortless cleaning, user-friendly operation, impressive output, and remarkable energy efficiency. The machine is user-friendly, easy to operate, maintain, and clean. It also features automatic discharging and the option to choose different aperture sieve tubes based on the user's requirements for achieving desired particle sizes. This makes it suitable for assembly line production.
Overview
The ZL Rotary Granulator, developed by Shanghai Jeter, is an advanced powder granulation solution designed for the pharmaceutical, chemical, and food industries. This high-efficiency equipment improves powder flowability, reduces dust emissions, and enhances solubility through precise particle agglomeration. Its compact structure, ergonomic design, and energy-efficient operation make it ideal for assembly line production.
Key advantages:
Optimized granulation for different powder viscosities
Automatic discharge for continuous operatio
Easy to operate, clean, and maintain
Fully compliant with GMP standards
Features & Benefits
Adjustable Milling & Pressing
Fine-tune knife speed and pressing blade height for uniform granules of any viscosity.
GMP-Compliant Stainless Steel
Polished surfaces minimize contamination and ensure effortless cleaning.
Energy-Efficient Operation
Optimized design reduces power consumption while maintaining high output.
Customizable Granule Size
Choose aperture sieve tubes to achieve particle sizes φ0.8–4.0 mm.
Easy Operation & Maintenance
User-friendly controls, minimal noise, long service life.
Model Specifications
| Model | Capacity (kg/h) | Power (kW) | Speed (rpm) | Knife Diameter (mm) | Granule Size (mm) | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|---|---|
| ZL-100 | 10–40 | 0.55 | 45 | 100 | φ0.8–4.0 | 70 | 400 × 400 × 550 |
| ZL-250 | 50–200 | 5.5 | 45 | 250 | φ0.8–4.0 | 280 | 600 × 850 × 950 |
| ZL-300 | 60–300 | 7.5 | 45 | 300 | φ0.8–4.0 | 350 | 650 × 850 × 950 |
| ZL-400 | 100–400 | 18.5 | 45 | 400 | φ0.8–4.0 | 500 | 730 × 1250 × 1050 |
Applications
💊 Pharmaceuticals – Tablets, capsules, powders
⚗️ Chemicals – Fine chemicals, catalysts, powders
🍲 Food Industry – Instant powders, flavorings, additives
💄 Cosmetics – Powders for creams, foundations, loose powders
Why Choose Shanghai Jeter?
✅ 10+ years of experience in designing high-performance granulators
✅ Customized solutions based on your production needs
✅ GMP & CE compliant equipment
✅ Strong after-sales support and maintenance
