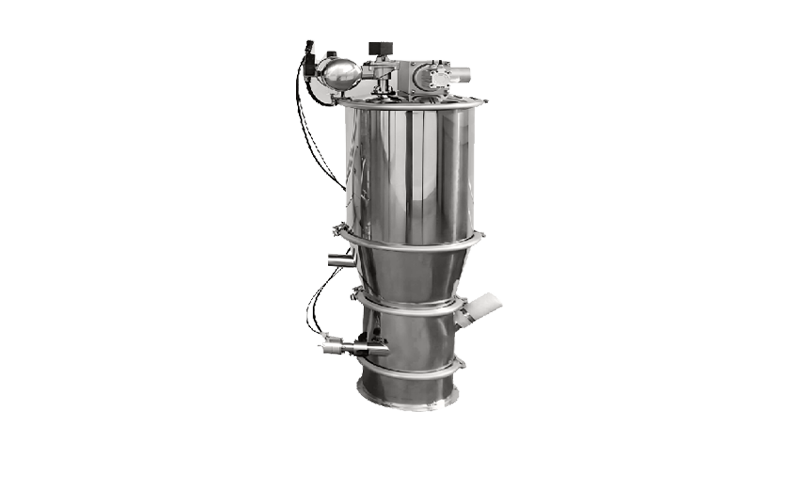

Vacuum Feeder
Utilizing microchip control technology for precise manipulation, effortless operation, and multiple alarm systems. Offering customized filtration devices to cater to customers' specific requirements with exceptional durability, superior dust trapping capabilities, and eco-friendly attributes. Equipped with a pulse compressed air blowback cleaning mechanism for convenient maintenance, disassembly, and noiseless operation. Automatically sealing the suction port and material intake during the blowing process to ensure zero dust or pollution. Capable of accommodating 1-4 vacuum hoppers suitable for long-distance transportation of various raw materials to either the extruder or storage tank/replenishment bin. Effectively achieving automation and unmanned green production mode while significantly reducing labor costs.
Vacuum feeder utilizes the negative pressure airflow generated by the vacuum equipment to suck the material from the inlet and realize the separation of material and air in the filtering bin. By gravity, the material automatically falls into the collection bin. Our cyclone separator effectively prevents fine powder from entering the filter and improves the efficiency of the filter. When the waiting bin is full of materials, the vacuum pump will automatically shut down, so that the internal balance of the conveying equipment is reached. At this time, the discharge valve opens, and the material flows out through the discharge port and is directly stored in the container. In the process of discharging, the blowback airbag will automatically clean the filter core. For more viscous materials, a special vibrator can be installed to assist in the discharge during the discharging process. When discharging is complete, the discharge chamber closes automatically and restarts the entire conveying process.
