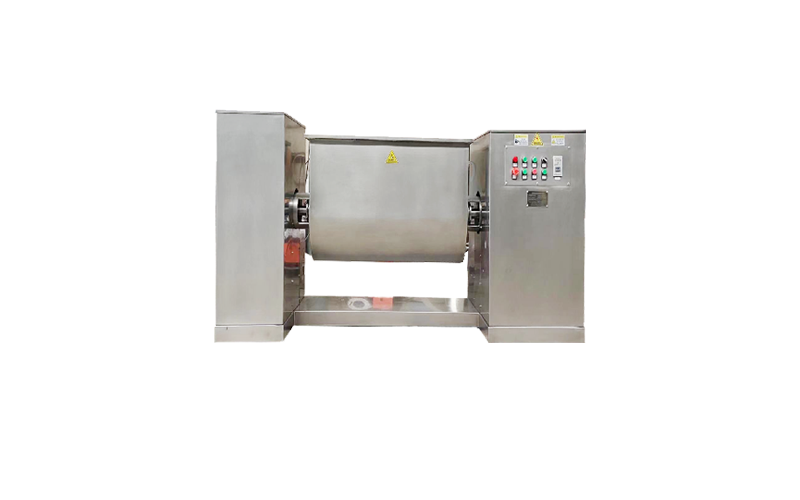

Trough Mixer

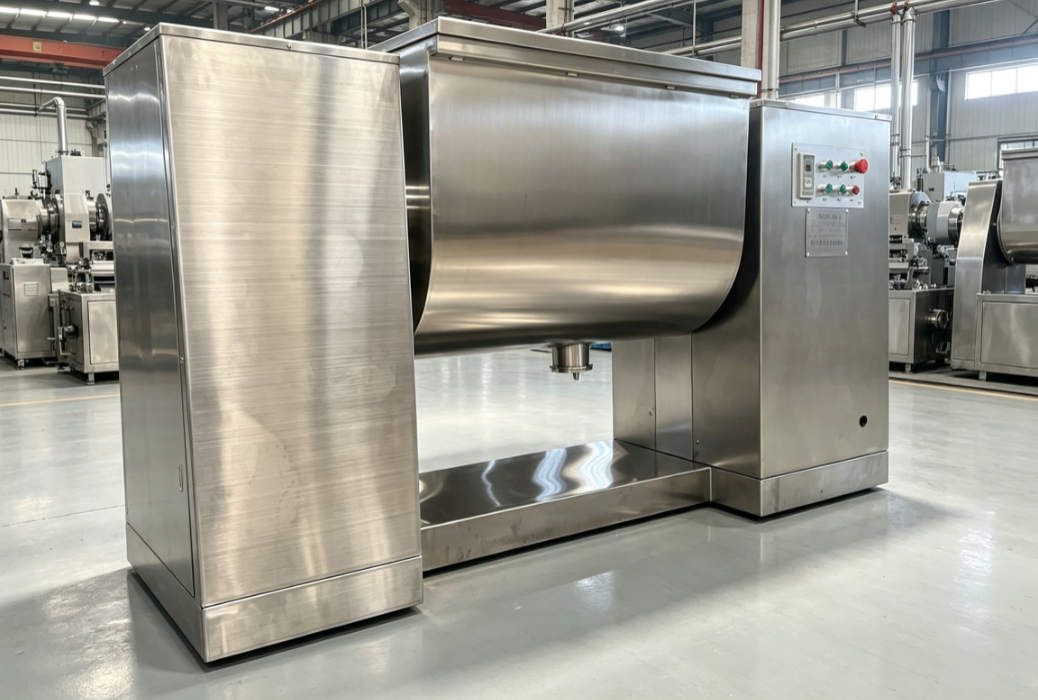

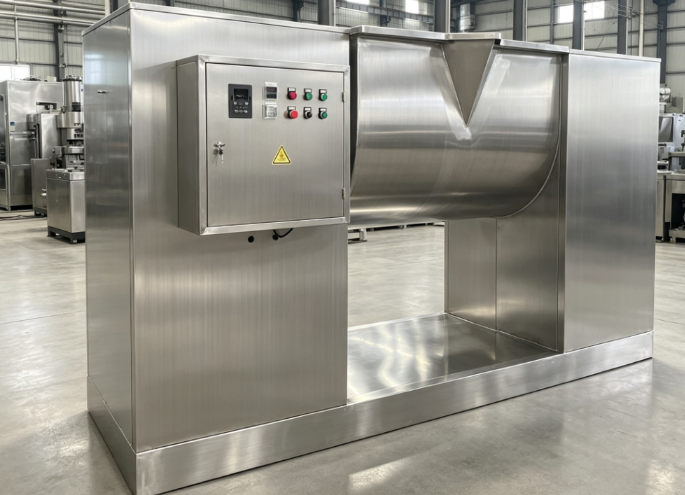

The machine is an integral machine base with solid and stable structure. Low noise when using When replacing the material, it can be washed by water directly, without dead angle.

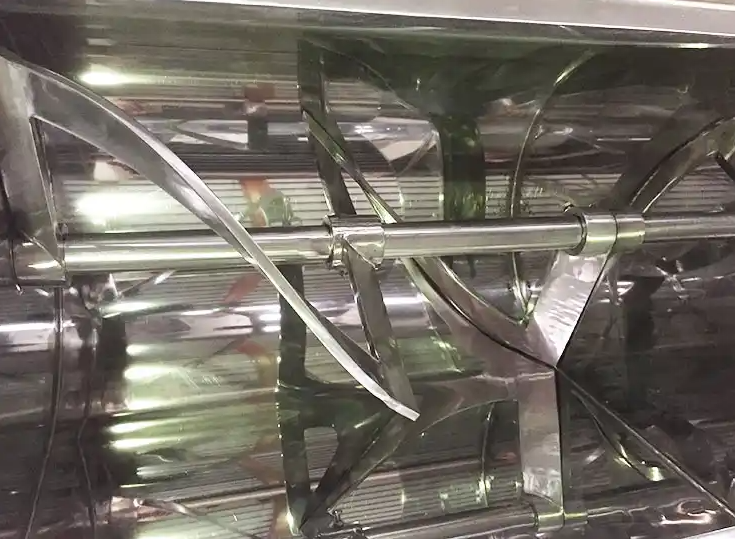

The trough mixer in this series is mechanically driven to rotate the S-type mixing pulp, ensuring uniform mixing. It operates with electrical control, allowing for adjustable mixing time and automatic cessation as well as motorized pouring upon reaching the set time. This method enhances material batch quality by achieving a high level of uniformity in the mixing effect.
The trough mixer is suitable for a wide range of materials, including dry powder, wet powder, granules, and flakes. It is widely used in the pharmaceutical, food, chemical, and metallurgical industries. Specifically designed for blending highly viscous or cohesive powders and granules, it also facilitates the addition of liquid and pasty materials.
Model | Trough volume [L] | Loading volume [ L] | Loading weight [kg] | Paddle speed [r/min] | Tilt angle
| Mixing motor [kw] | Tilt motor [kw] | Dimensions [mm] | Weight [kg] |
CH-50 | 50 | 30 | 30 | 24 | <105 | 1.5 | 0.37 | 1265*430*720 | 200 |
CH-100 | 100 | 60 | 60 | 24 | <105 | 2.2 | 0.55 | 1580*500*830 | 300 |
CH-150 | 150 | 90 | 90 | 24 | <105 | 3 | 0.75 | 1685*600*1000 | 650 |
CH-200 | 200 | 140 | 120 | 24 | <105 | 4 | 0.75 | 1850*600*1000 | 720 |
CH-300 | 300 | 180 | 160 | 24 | <105 | 5.5 | 1.1 | 2160*700*1250 | 750 |
CH-400 | 400 | 300 | 200 | 24 | <105 | 7.5 | 1.5 | 2280*700*1250 | 780 |
CH-500 | 500 | 380 | 300 | 24 | <105 | 11 | 1.5 | 2450*700*1250 | 820 |
CH-600 | 600 | 450 | 350 | 24 | <105 | 11 | 2.2 | 2500*900*1350 | 850 |
