Fluid bed dryers & coolers
• Good adjustability and wide adaptability. Material residence time and layer thickness as well as amplitude drying temperature can be adjusted. •Good sealing adopts fully closed structure, effectively preventing the cross-pollution between materials and air, and the operating environment is clean. •Little damage to the surface of materials. It can be used for the drying of fragile materials, and the irregular shape of material particles will not affect the working effect. •The equipment adopts the form of sectional air inlet, and is designed with drying section and cooling section. •The system adopts the design of combining drying and cooling, with large output and strong adjustability. •The cooling section adopts a freezing and dehumidifying device, which prevents the material from returning to moisture twice in the natural cooling process.

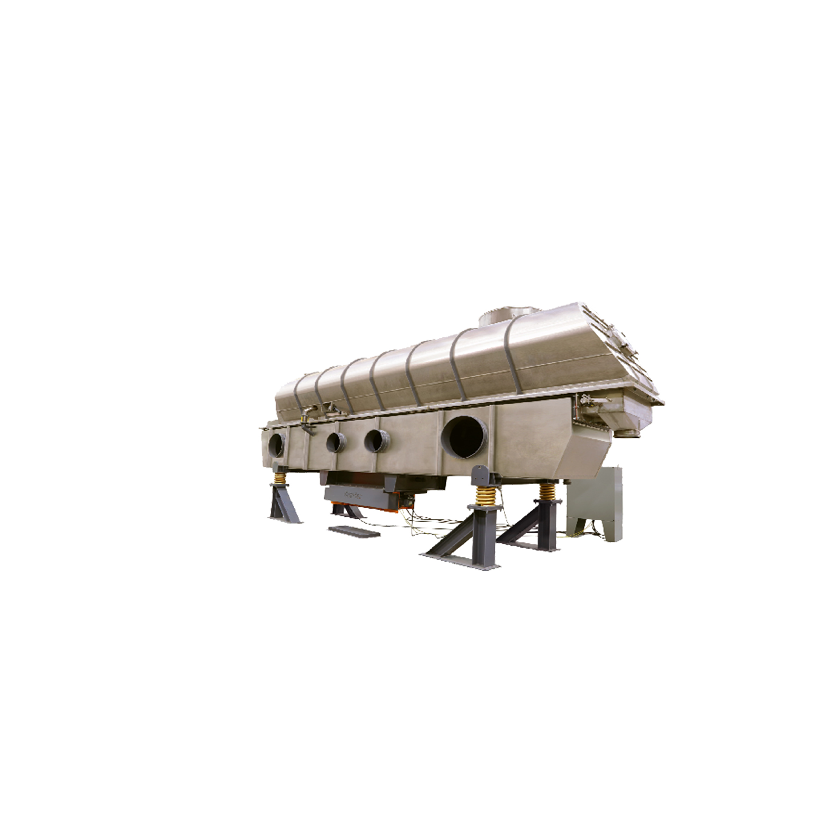

Fluid bed dryers & coolers of the leading series of products of our factory. The material enters into the fluidized bed from the inlet; under the action of the two vibration motors installed on both sides of the bed to produce a fixed frequency of excitation force, the material jumps along the horizontal mesh plate and throws forward in a continuous movement; the hot air passes through the mesh plate from the lower part upward and passes through the layer of the material, and is discharged from the exhaust port after sufficient heat transfer and mass transfer and the dry material is discharged from the discharge port to achieve the purpose of dewatering and drying.
Vibrating fluidized bed dryer has high degree of fluidization, uniform heating of materials, full heat exchange, high drying intensity, 30% energy saving compared with general drying device, and it can obtain uniform drying, cooling and humidifying products without dead bed and tengchong and gully flow phenomenon.
The vibration source is driven by vibration motor, stable operation, convenient maintenance, low noise, long service life of the equipment.
